Best-Selling 20l Bottle Blow Molding Machine - Hot Sale Plastic Blow Molding Machine for Multi Layers 220L Plastic Open Top Chemical Drum Making – Tonva Detail:
Product Description
TECHNICAL SPECIFICATION
| Category / 类别 | Item/项目 | Unit /单位 | 20L | 30L |
60L |
120L |
160L |
220L |
500L |
| Basic Specification | Raw Material |
— |
PE/PP/PA/PVC etc | PE/PP/PA/PVC etc | |||||
| Dimension |
m |
4.2×2.2×3.0 |
4.8×2.2×3.3 |
5.2×2.4×3.6 |
6.2×2.8×4 | 6.6×3.0×4.2 |
7×3.2×4.5 |
7.5×3.6×5.5 |
|
| Total Weight |
T |
8.5 |
10 |
13 |
18 |
22 |
28 |
32 |
|
| Extrusion System | Screw motor |
KW |
18.5 |
30 |
37 |
55 |
75 |
90 |
110 |
| Diameter of screw |
mm |
70 |
80 |
90 |
100 |
100 |
120 |
120 |
|
| Screw L / D ratio |
L/D |
25:1 |
23:1 |
25:1 |
28:1 |
28:1 |
28:1 |
28:1 |
|
| Extruder heating power |
KW |
18 |
15 |
18 |
20 |
23 |
28 |
30 |
|
| Number of heating zones |
pcs |
4 |
4 |
5 |
5 |
6 |
6 |
6 |
|
| Plasticizing capacity |
kg/h |
70-80 |
90-100 |
140-160 |
160-200 |
200-250 |
250-300 |
300-350 |
|
| Die Head | Heating zones |
pcs |
4 |
4 |
4 |
5 |
5 |
6 |
6 |
| Heating power |
KW |
10 |
12 |
13 |
15 |
20 |
28 |
35 |
|
| Number of cavities |
— |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
| Clamping System | Clamping distance |
mm |
500 |
550 |
650 |
800 |
900 |
1000 |
1200 |
| Open stroke |
mm |
350-850 |
350-900 |
400-1050 |
450-1250 | 700-1600 | 700-1700 |
900-2100 |
|
| Clamping force |
kn |
200 |
250 |
300 |
122 |
155 |
187 |
221 |
|
| Power consumption | Total power |
KW |
61.5 |
84 |
95.5 |
44^16/59-63 |
72-78 |
80-110 |
136-140 |
| Air pressure |
MPa |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
| Air consumption |
m3/ min |
0.6/0.4 |
0.8/0.4 |
0.8/0.6 |
1 /0.8 |
0.8 |
1 |
1.1 |
|
| Water consumption |
m3/ h |
0.6/1 | 1/1.2 |
1/1.2 |
1.2/1.5 |
1.5 |
2 |
2.2 |
|
Product Description

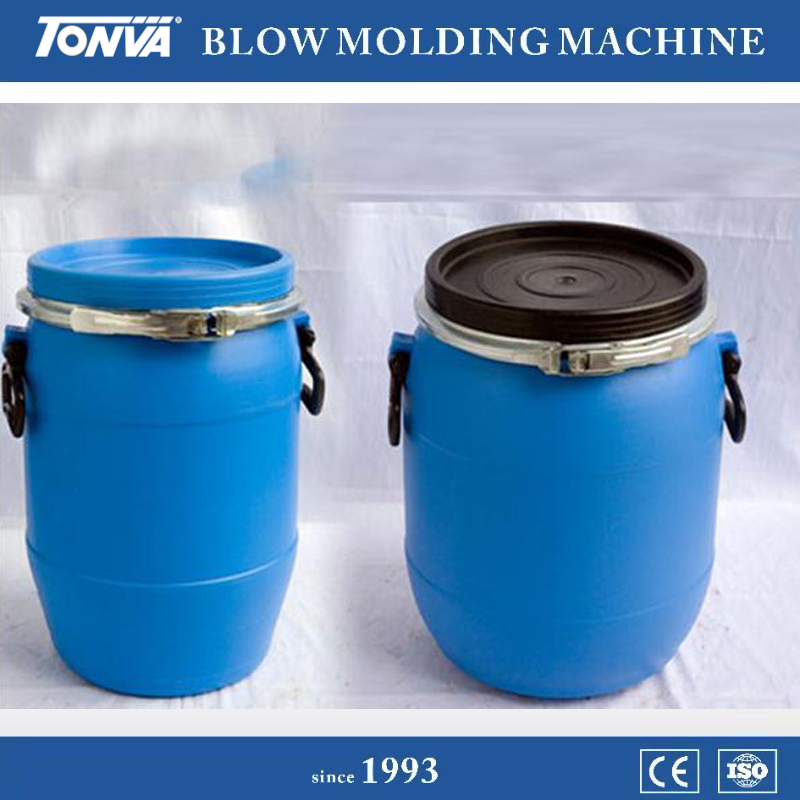

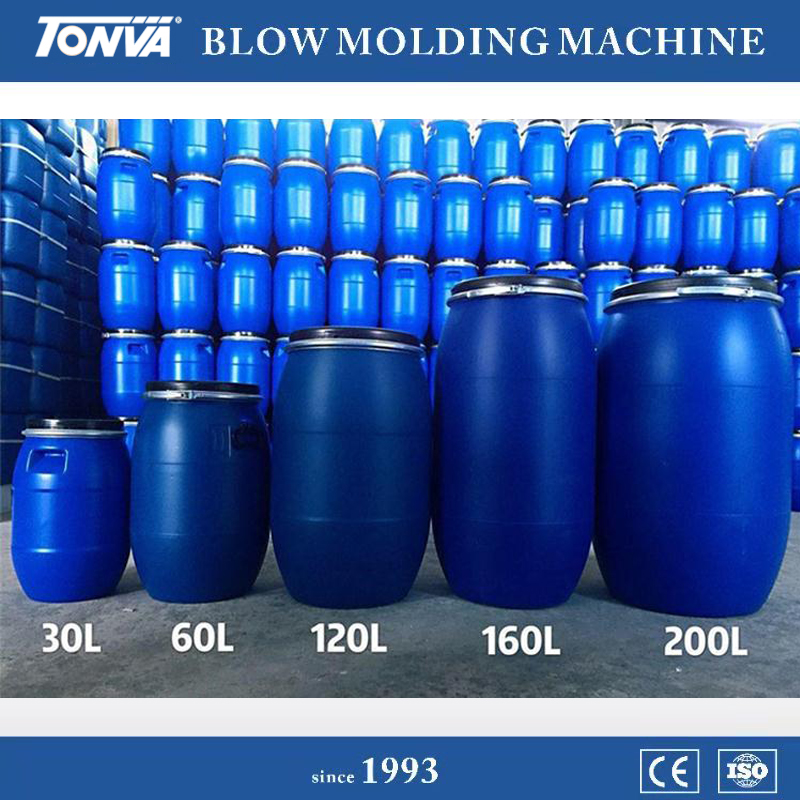

| This series is applicable for PE etc raw material,and capacity between 20L and 500L.It is widely used in plastic barrel,tool boxes,hollow desk board,chairs,auto parts and other large and medium-sized plastic hollow products | |||
| Adopts two pull-rod type closing-mold device by rack and pinion system.The large setting platen is suitable for various sizes of molds | |||
| Good channel design with first IN/OUT system of accumulator die head,easy change color and raw material |
We normally continually supply you with essentially the most conscientious shopper support, along with the widest variety of designs and styles with finest materials. These attempts include the availability of customized designs with speed and dispatch for Massive Selection for HDPE Plastic Bottles Extrusion Blow Molding Machine Made in China, On account of superior quality and competitive selling price , we’re going to be the current market leader, be sure to don’t wait to contact us by mobile phone or email, in case you are fascinated in any of our products.
We normally continually supply you with essentially the most conscientious shopper support, along with the widest variety of designs and styles with finest materials. These attempts include the availability of customized designs with speed and dispatch for Blow Molding Machinery, China Plastic Blowing Machine, Since the establishment of our company, we have realized the importance of providing good quality products and the best before-sales and after-sales services. Most problems between global suppliers and clients are due to poor communication. Culturally, suppliers can be reluctant to question things they do not understand. We break down those barriers to ensure you get what you want to the level you expect, when you want it.
Factory Workshop
Our Service
Reply the request and take action in24 hours.
Blowing mould and injection mould made at TONVA original company.
100% Quality inspection before the shipment.
Auxiliary machine for complete line.
Provide training service in TONVA company or clinet’s factory.
Customized design is available as requirements.
Engineer for overseas installation is available
Provide consultation service in request.
Sample Room
Custormers
Service Marketing Network
Our machine has been serving customers all over the world.
